Protocol Converter

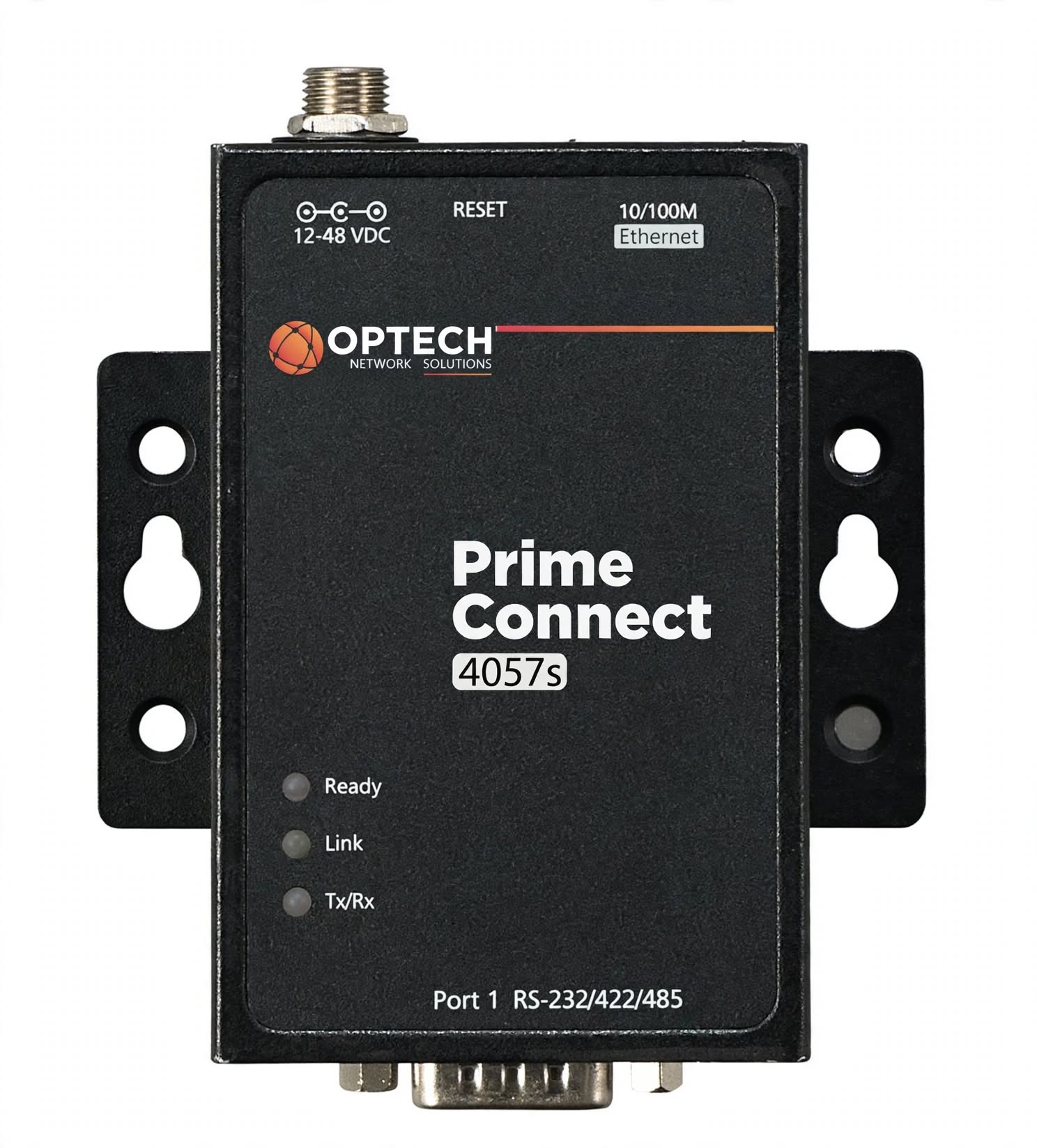

Optech Network Solutions Prime Connect 4057s
The Optech Network Solutions Prime Connect 4057s is an industrial serial-to-Ethernet device server designed to connect serial equipment to an IP-based Ethernet network. It provides a single serial communication interface and supports RS-232, RS-422 and RS-485 communication, allowing legacy and industrial serial devices to be integrated into modern Ethernet-based systems. The underlying source specification supports the same three serial standards across the product variants. The Prime Connect 4057s is intended for applications where serial equipment needs to be accessed, monitored or controlled through an Ethernet network. It supports TCP/IP-based communication, multiple serial-to-network operating modes, and network management functions.
Key Features
1-port serial-to-Ethernet connectivity
Supports RS-232, RS-422 and RS-485
1 × 10/100 Mbps RJ45 Ethernet port
Standard TCP/IP networking
DHCP, ARP, BOOTP, DNS, HTTP/HTTPS, ICMP, IPv4, LLDP, SMTP and SNMP support
Technical Specifications
| Specification | Optech Network Solutions Prime Connect 4057s |
|---|---|
| Product Type | Industrial 1-Port Serial-to-Ethernet Device Server |
| Ethernet Interface | 1 × 10/100 Mbps RJ45 Ethernet port |
| Ethernet Standard | 10BASE-T / 100BASE-TX |
| Ethernet Isolation | 1.5 kV built-in magnetic isolation |
| Serial Interface | 1 × serial port |
| Serial Connector | DB9 male |
| Serial Standards | RS-232 / RS-422 / RS-485 |
| Network Interface | Standard TCP/IP Ethernet |
| Operating Modes | Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, UDP |
| Baud Rate | 50 bps to 921.6 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS and DTR/DSR for RS-232; XON/XOFF |
| RS-485 Pull High/Low Resistor | Configurable: 1 kΩ / 150 kΩ |
| RS-485 Data Direction Control | Automatic data-direction control |
| RS-485 Termination | 120 Ω |
| RS-232 Signals | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 Signals | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485 4-Wire Signals | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485 2-Wire Signals | Data+, Data-, GND |
| Network Management | DHCP Client, ARP, BOOTP, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, SMTP, SNMP, TCP/IP, Telnet and UDP |
| Multicast / Filtering | IGMP v1/v2 support |
| Web Management | Web-based configuration and management |
| Security | Local authentication with HTTPS-based secure management |
| Encryption / Security Algorithms | AES-128, SHA-1, RSA-1024, SHA-256, subject to implemented firmware/security configuration |
| Secure Protocol | HTTPS / TLS 1.2 |
| Serial Driver Support | Real COM / TTY connectivity |
| Automatic Reboot | Built-in watchdog timer |
| Power Inputs | 1 |
| Input Voltage | 12–48 VDC |
| Power Connection | DC power input |
| Housing | Metal industrial enclosure |
| Dimensions with Mounting Ears | Approx. 75.2 × 80 × 22 mm |
| Dimensions without Mounting Ears | Approx. 52 × 80 × 22 mm |
| Weight | Approx. 340 g |
| Installation | Desktop, wall mounting or DIN-rail mounting with suitable mounting accessory |
| Standard Operating Temperature | 0°C to 60°C |
| Wide-Temperature Operating Range | -40°C to 75°C |
| Storage Temperature | -40°C to 75°C |
| Relative Humidity | 5% to 95% RH, non-condensing |
