ON-5524E-2F

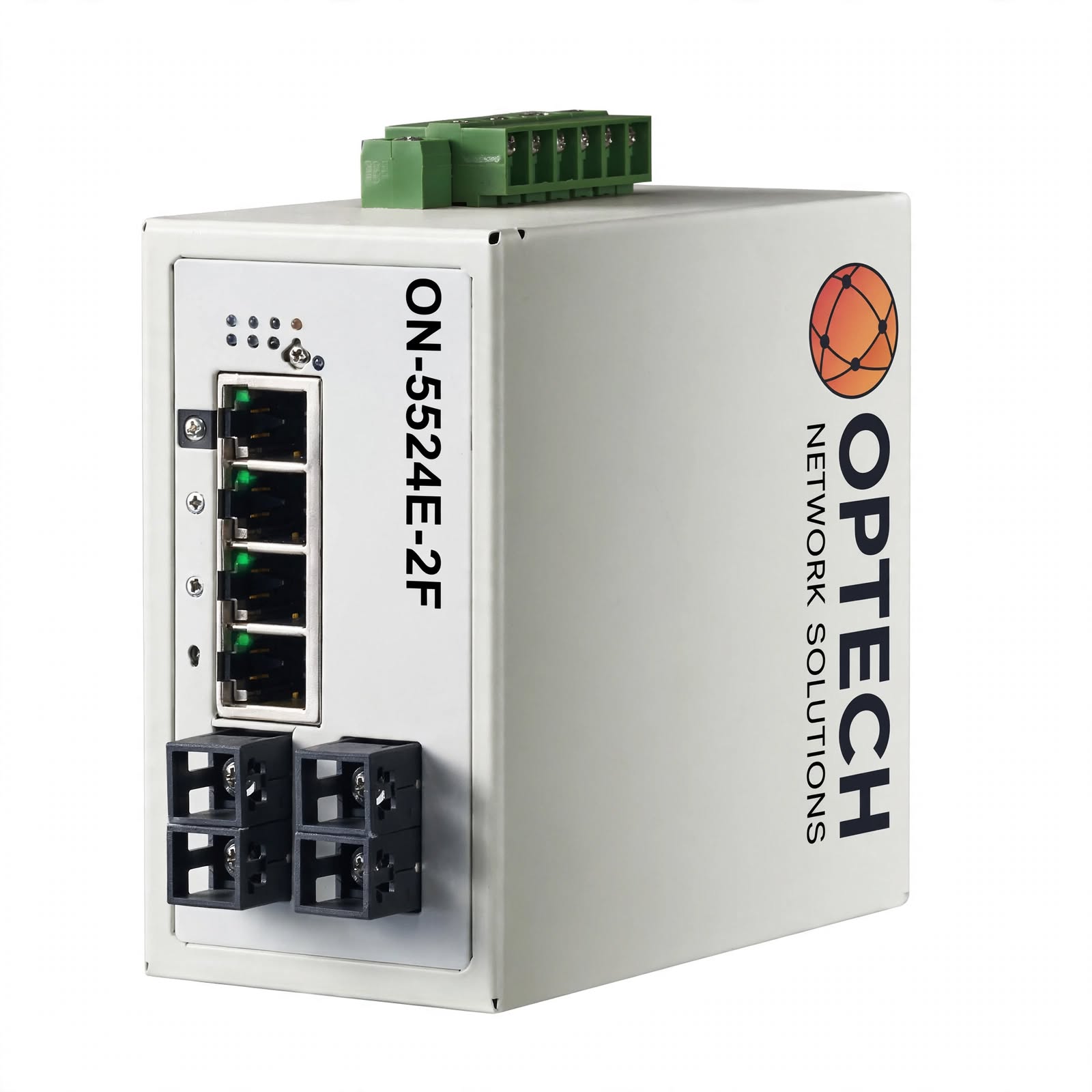

The Optech Network Solutions ON-5524E-2F is a compact 6-port unmanaged industrial Ethernet switch designed for reliable connectivity between copper Ethernet devices and Fast Ethernet fiber networks. It provides 4 × 10/100Base-T(X) RJ45 ports and 2 × 100Base-FX fiber ports, with support for single-mode or multimode fiber and SC/ST connector variants. Designed for industrial environments, the switch supports redundant 12–48 VDC power inputs, loop detection, jumbo frames, port-based QoS, and a durable metal enclosure suitable for DIN-rail or wall mounting.
Key Features
6-Port Industrial Connectivity 4 × 10/100Base-T(X) RJ45 ports + 2 × 100Base-FX fiber ports.
Single-Mode & Multimode Fiber Support Up to 30 km with single-mode fiber and up to 2 km with multimode fiber.
Redundant Industrial Power 12–48 VDC wide-range input with redundant dual inputs and P-Fail relay output.
Industrial Networking Features Loop detection, port-based QoS, IEEE 802.3az Energy Efficient Ethernet and jumbo frames up to 9,216 bytes.
Heavy-Duty Industrial Construction IP30 metal enclosure with DIN-rail/wall mounting and overload/reverse-polarity protection.
Technical Specifications
| Specification | ON-5524E-2F |
|---|---|
| Product Model | Optech Network Solutions ON-5524E-2F |
| Product Type | 6-Port Unmanaged Industrial Ethernet Switch |
| Total Ports | 6 |
| Ethernet Ports | 4 × 10/100Base-T(X) RJ45 |
| Fiber Ports | 2 × 100Base-FX |
| Fiber Type | Single-Mode / Multimode |
| Fiber Connector Options | SC / ST |
| Ethernet Transmission Distance | Up to 100 m |
| Multimode Fiber Distance | Up to 2 km |
| Single-Mode Fiber Distance | Up to 30 km |
| Transmission Speed | Up to 100 Mbps |
| Multimode Fiber Wavelength | 1310 nm |
| Multimode Tx Power | -14 / -20 dBm |
| Multimode Rx Sensitivity | -32 dBm |
| Multimode Fiber Parameters | 50/125 µm, 62.5/125 µm |
| Single-Mode Fiber Wavelength | 1310 nm |
| Single-Mode Tx Power | -8 / -15 dBm |
| Single-Mode Rx Sensitivity | -34 dBm |
| Single-Mode Fiber Parameters | 9/125 µm |
| MAC Table Size | 2K entries |
| Packet Buffer Size | 1 Mbit |
| Switching Capacity | 1.2 Gbps |
| Jumbo Frame Support | Up to 9,216 bytes |
| Network Standards | IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3az, 802.3ab |
| QoS | Port-based QoS |
| Loop Detection | Supported |
| SCADA Communication | Modbus/TCP |
| NMS Communication | SNMP |
| Ethernet Connectors | 4 × RJ45 |
| Fiber Connectors | 2 × SC/ST fiber optic connectors |
| Terminal Block | 6-pin screw terminal block with relay |
| LED Indicators | P1, P2, P-Fail, Loop Detection |
| Ethernet LED Indicators | Link/Activity, Speed |
| Power Input | 12–48 VDC |
| Input Voltage Range | 8.4–52.8 VDC |
| Power Configuration | Redundant dual inputs |
| Maximum Power Consumption | 4 W |
| Fault Output | 1 × Relay Output |
| Enclosure | IP30 metal shell |
| Mounting | DIN-Rail / Wall Mount |
| Dimensions (W × H × D) | 43 × 120 × 84 mm |
| Operating Temperature – Standard | -10°C to 60°C |
| Operating Temperature – Wide Temperature | -40°C to 75°C |
| Storage Temperature | -40°C to 75°C |
| Operating Humidity | 10–95% RH, non-condensing |
| Storage Humidity | 10–95% RH, non-condensing |
| Protection | Reverse Polarity Protection, Overload Current Protection |
| MTBF | 144,890 hours |
| Safety Certifications | IEC/EN 60950, UL60950, UL508, Class 1 Division 2, ATEX |
| EMI | FCC Part 15 Subpart B Class A, EN 55011/55022 Class A |
| EMS | EN61000-4-2/-3/-4/-5/-6/-8, Level 3 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
