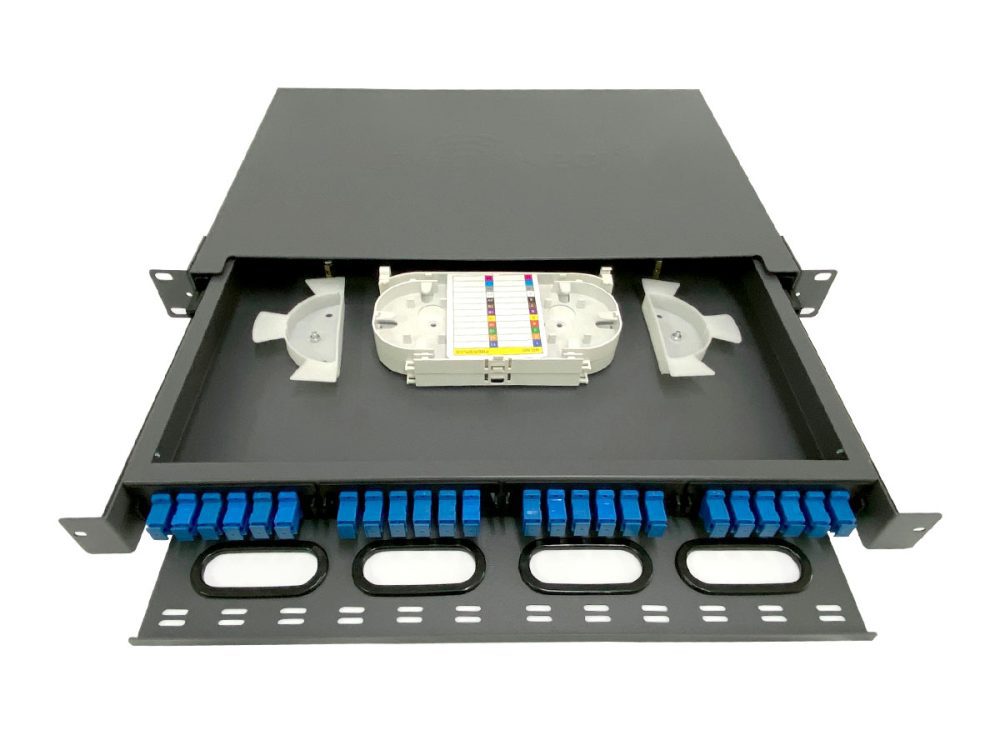

ON-12FLIU 12 Fiber Rack-Mount Sliding Optical Fiber Interconnection Unit
The Optech Network Solutions ON-12FLIU is a 19-inch rack-mount sliding Optical Fiber Interconnection Unit designed for optical fiber termination, interconnection, cross-connection, splicing, and fiber management. Its modular sliding design provides convenient access to the internal fiber-management area, making installation, fiber routing, splicing, and maintenance easier. The ON-12FLIU provides a higher fiber capacity than the 6-fiber version while retaining a compact 1U rack-mount configuration. It is suitable for telecommunications, optical fiber networks, FTTx, OSP, LAN, and structured fiber infrastructure applications.
Key Features
Optical Fiber Networks
Telecommunications Networks
FTTx Infrastructure
Outside Plant (OSP) applications
Fiber Distribution
Technical Specifications
| Specification | ON-12FLIU 12 Fiber Rack-Mount Sliding Optical Fiber Interconnection Unit |
|---|---|
| Product Type | Rack-Mount Sliding Optical Fiber Interconnection Unit |
| Fiber Capacity | 12 Fiber |
| Mounting | 19-inch Standard Rack Mount |
| Rack Height | 1U (44.4 mm) |
| Dimensions | 480 × 310 × 44.4 mm |
| Suitable Adapter | SC / FC / LC / ST |
| Material | Cold Rolled Steel |
| Cable Entry | 20 mm |
| Surface Finish | Powder Coating |
| Operating Temperature | -40°C to +60°C |
| Application | Fiber Termination, Splicing, Interconnection and Cross-Connection |
