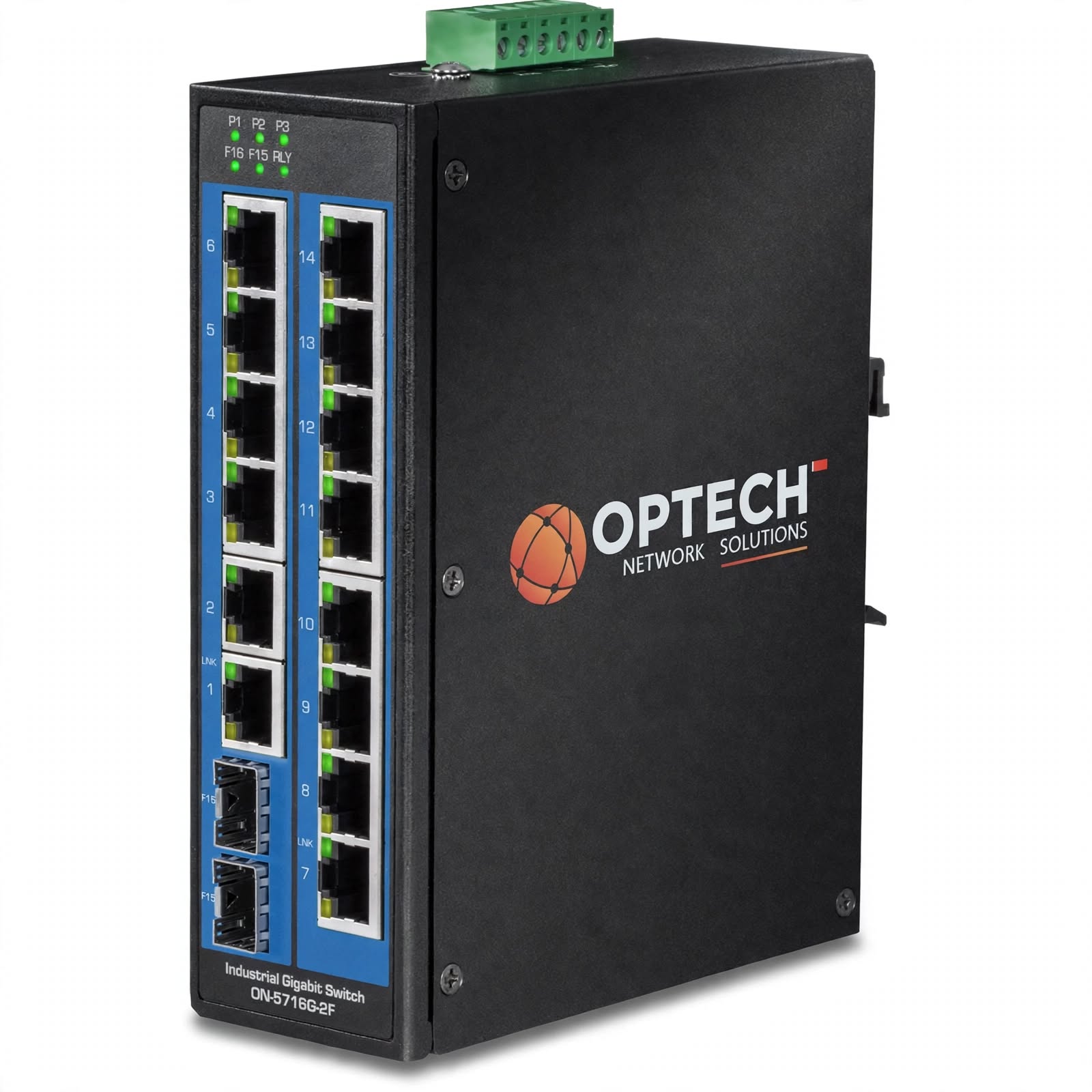

ON-5716G-2F
14 × Gigabit Ethernet + 2 × Gigabit Fiber Unmanaged Industrial Ethernet Switch The Optech Network Solutions ON-5716G-2F is a 16-port unmanaged industrial Gigabit Ethernet switch designed for demanding industrial networking environments. It provides 14 × Gigabit copper Ethernet ports and 2 × Gigabit SFP fiber slots, with a durable IP30 metal enclosure, redundant power inputs, alarm relay, and a wide operating temperature range of -40°C to +75°C.
Key Features
16-Port Gigabit Connectivity 14 × Gigabit Ethernet ports plus 2 × Gigabit SFP slots supporting 1000Base-FX fiber modules.
Industrial Hardened Design IP30-rated metal enclosure designed for demanding environments with shock and vibration resistance.
Redundant Power Inputs 12–56 VDC multiple power inputs with overload current protection for improved power reliability.
High-Speed Switching 32 Gbps switching capacity, 23.8 Mpps forwarding rate, 8K MAC address table, and 9KB jumbo frames.
Industrial Alarm & Mounting Power-failure alarm relay, grounding point, DIN-Rail and wall-mount installation options.
Technical Specifications
| Specification | ON-5716G-2F |
|---|---|
| Product Model | Optech Network Solutions ON-5716G-2F |
| Product Type | 16-Port Unmanaged Industrial Gigabit Ethernet Switch |
| Total Ports | 16 |
| Ethernet Ports | 14 × Gigabit Ethernet |
| Fiber Ports | 2 × Gigabit SFP slots |
| Fiber Standard | 1000Base-FX via SFP modules |
| Ethernet Speed | 10/100/1000 Mbps |
| Gigabit Full-Duplex Rate | 2000 Mbps |
| SFP Full-Duplex Rate | 2000 Mbps |
| Duplex Support | Full-duplex / Half-duplex |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
| Switching Capacity | 32 Gbps |
| Forwarding Rate | 23.8 Mpps @ 64-byte packets |
| MAC Address Table | 8K entries |
| Data RAM Buffer | 512 KB |
| Jumbo Frame | Up to 9 KB |
| Switching Method | Unmanaged switching |
| Power Input | 12–56 VDC |
| Power Configuration | Multiple / redundant power inputs |
| Maximum Power Consumption | 13 W |
| Power Protection | Overload current protection |
| Power Alarm | Supported |
| Alarm Relay Output | 1A @ 24V DC |
| Terminal Block | 6-pin removable terminal block |
| Terminal Block Functions | Redundant power inputs + alarm relay contact |
| Wire Range | 0.34–2.5 mm² |
| Grounding Point | Supported |
| ESD Protection | 6 kV contact, 8 kV air |
| Surge Protection | 2 kV |
| Enclosure | Heavy-duty metal case |
| IP Rating | IP30 |
| Mounting | DIN-Rail / Wall Mount |
| Operating Temperature | -40°C to +75°C |
| Operating Humidity | Up to 95% RH, non-condensing |
| Dimensions (L × W × H) | 155 × 120 × 48 mm |
| Weight | 536 g |
| Shock Resistance | IEC 60068-2-27 |
| Freefall Resistance | IEC 60068-2-32 |
| Vibration Resistance | IEC 60068-2-6 |
| EMC/EMS | IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5 |
| MTBF | 514,167 hours @ 50°C; 188,310 hours @ 75°C — source-referenced |
