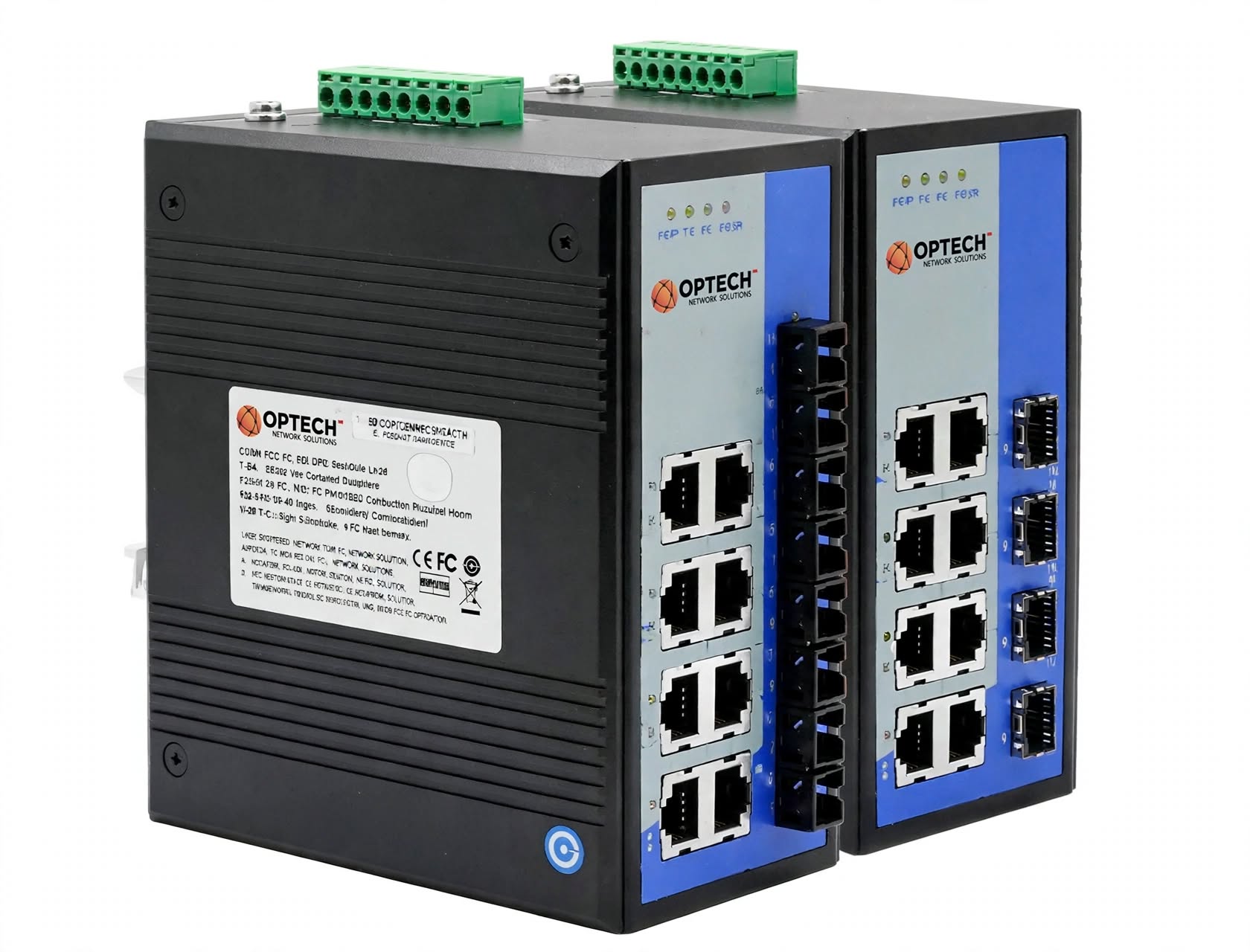

ON-6012G-2F
10 × Gigabit Ethernet + 2 × Fiber Unmanaged Industrial Ethernet Switch The Optech Network Solutions ON-6012G-2F is a 12-port full Gigabit unmanaged industrial Ethernet switch designed for high-speed and reliable industrial networking. It provides 10 × 10/100/1000Base-T(X) RJ-45 Ethernet ports and 2 × 1000Base-X fiber ports, with support for SC, ST, FC, or SFP fiber interfaces depending on the selected configuration.
Key Features
12-Port Gigabit Configuration 10 × 10/100/1000Base-T(X) RJ-45 ports + 2 × 1000Base-X fiber ports.
Flexible Fiber Connectivity Supports optional SC, ST, FC, and SFP fiber interfaces.
Industrial-Grade Operation Wide operating temperature range of -40°C to +85°C, fanless design, and IP40 enclosure.
High-Speed Switching 24 Gbps switching bandwidth, 1,488,095 pps forwarding rate, and 8K MAC address table.
Reliable Power & Alarm Functions Supports dual power inputs and power alarm functionality for industrial applications.
Technical Specifications
| Specification | ON-6012G-2F |
|---|---|
| Product Model | Optech Network Solutions ON-6012G-2F |
| Product Type | 12-Port Full Gigabit Unmanaged Industrial Ethernet Switch |
| Total Ports | 12 |
| Ethernet Ports | 10 × 10/100/1000Base-T(X) RJ-45 |
| Fiber Ports | 2 × 1000Base-X |
| Fiber Interfaces | SC / ST / FC / SFP slot, depending on configuration |
| Ethernet Transmission Distance | Up to 100 m over Cat.5e |
| Single-Mode Fiber Distance | 20 / 40 / 60 km @ 1310 nm; 80 / 100 / 120 km @ 1550 nm |
| Multi-Mode Fiber Distance | Up to 2 km @ 1310 nm |
| Duplex Mode | Full-duplex / Half-duplex |
| Auto MDI/MDI-X | Supported |
| Switching Method | Store-and-forward |
| Switching Bandwidth | 24 Gbps |
| Forwarding Rate | 1,488,095 pps |
| MAC Address Table | 8K |
| Forwarding | Non-blocking, full-line-rate forwarding |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab |
| Power Alarm | Supported |
| Power Input – Option 1 | 12/24/48 VDC |
| DC Input Range | 10.8–52.8 VDC |
| Power Input – Option 2 | 110/220 VAC, 88–264 VAC, 50–60 Hz |
| AC/DC High-Voltage Input | 110/220 VDC, 88–264 VDC |
| Power Configuration | Dual power input supported |
| Rated Power Consumption | 15 W |
| Enclosure | Industrial metal enclosure, fanless |
| IP Rating | IP40 |
| Dimensions | 150 × 120 × 70 mm |
| Weight | <1600 g |
| Installation | DIN-Rail |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 0–95% RH, non-condensing |
| EMI | FCC Part 15, CISPR (EN55022) Class A |
| EMS | IEC(EN)61000-4-2, -4-3, -4-4, -4-5, -4-6 |
| Mechanical Tests | IEC 60068-2-27 Shock; IEC 60068-2-32 Freefall |
| MTBF | >500,000 hours, source-referenced |
